LVC ENGINEERING HOLDINGS JOINT STOCK COMPANY is one of the leading manufacturers and suppliers of bulletproof vest plate al2o3 ceramic sheet nij iii sta in Vietnam. With abundant experience, we warmly welcome you to wholesale bulk bulletproof vest plate al2o3 ceramic sheet nij iii sta from our factory. Customized orders are welcome.
-

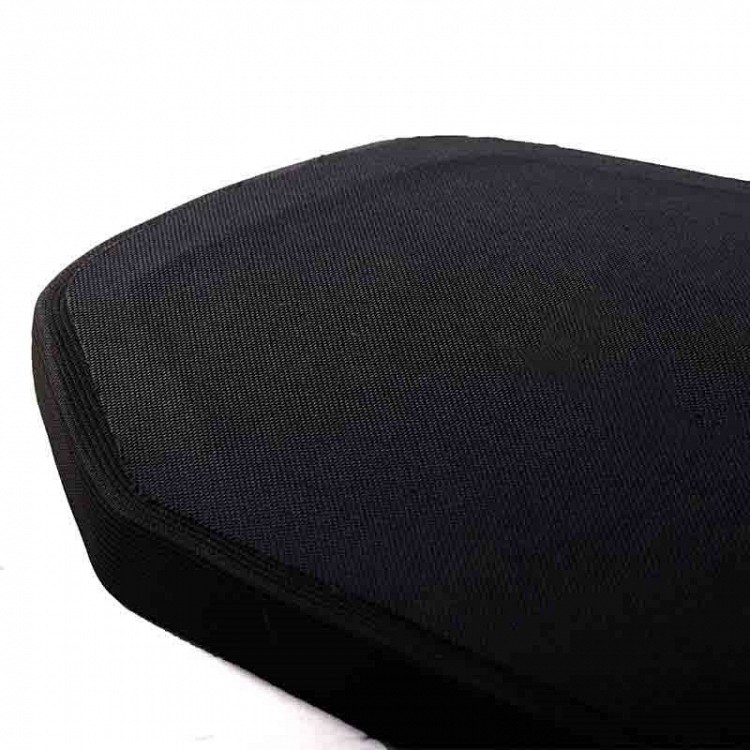

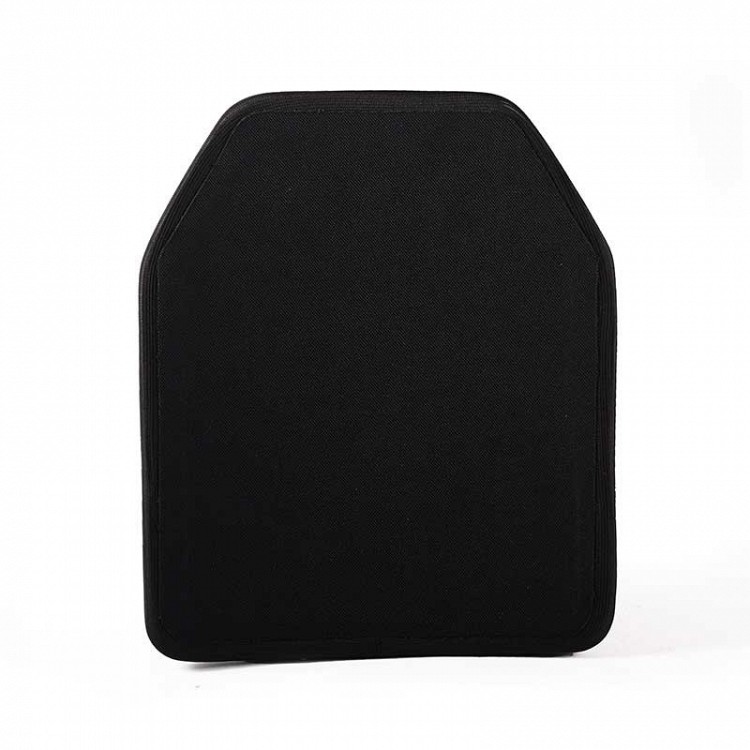

Product name: Ceramic Body Armor AL2O3 Ceramic Ballistic Plate NIJ III STA 300×350mm
-
Model number: BD31362
-
Material: PE+AL2O3 ceramic sheet
-
Size: 300×350mm
-
Thickness: 22mm±0.5mm
-
Weight: 3.65KGS±0.05KG
-
Ballistic level: NIJ III STA
-
Testing standard: NIJ Standard 0104.01
• Single curve design for ergonomics;
• Ceramic Ballistic Plate Can be used with a bullet-proof vest as a front or rear panel to enhance the anti-ballistic level, or as a separate bullet-proof panel;
• Use ultra-high molecular polyethylene PE + alumina AL2O3 ceramic sheet to provide a higher bulletproof level;
• Standardized size 250*300mm protects the core of the body and can be customized in different sizes;
• The chamfered design facilitates the removal and installation of the card;
• Select waterproof fabric or polyurea painting process, wear-resistant, aging-resistant, anti-corrosion, waterproof, and improve the life of the board.
Q: What kind of physical injury might a wearer suffer after being stopped by a bullet through a Ceramic Ballistic Plate?
A: This type of injury, where the bullet doesn't penetrate, is called "blunt trauma" or "dorsal convexity injury," and its severity depends on the bullet's energy and the plate's design.
Common injuries:
• Severe soft tissue contusions: Extensive bruising and tearing of subcutaneous tissue and muscle.
• Rib fractures: Most common, potentially leading to pneumothorax or hemothorax.
• Internal organ concussion or rupture: Cardiac concussion (rare but potentially fatal), lung contusion, liver and spleen damage.
• Nerve concussion: Can cause momentary respiratory distress, temporary paralysis, or shock.
• NIJ standards: Laboratory testing requires a dorsal convexity indentation depth of no more than 44 mm (approximately 1.73 inches), but this can still cause serious injury. Professional training emphasizes that even if the bullet doesn't penetrate, immediate tactical evacuation and medical examination are essential after being hit.
